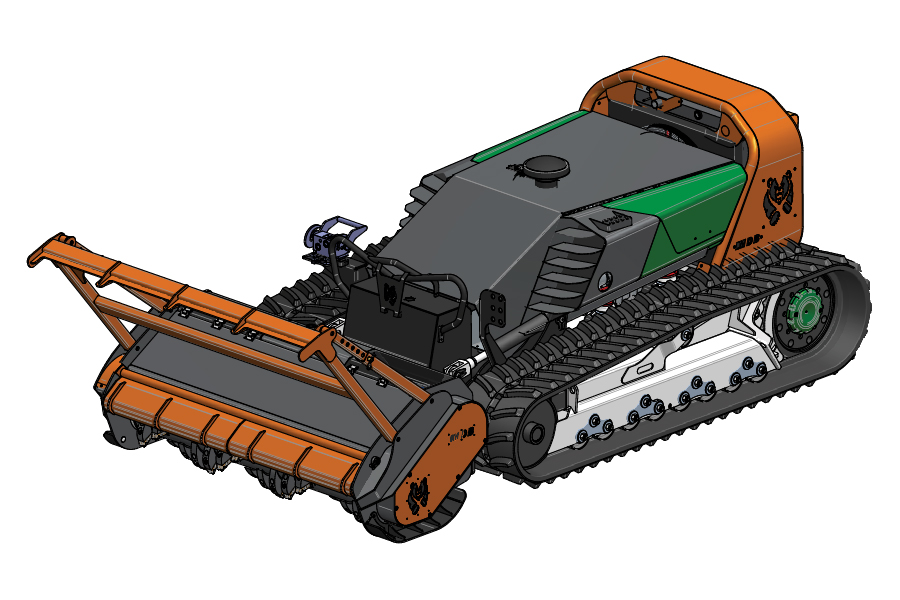

The LV 1400 PRO is designed for heavy duty forest maintenance work. The machine can be fitted with a wide range of attachments to use max power for most efficient results.
We have distributors in every corner of the earth and they will be at your disposal for any machine service. Technicians are available from the diagnostic stage, the spare parts ordering stage through to installation.
Compact dimensions and low weight allow Green Climbers to have the best power-to-weight ratio.
The LV 1400 PRO is an extremely multifunctional and versatile machine beyond the forest.
Its robust front plate and auxiliary arm can be fitted with a wide range of attachments for uses from road bank and motorway maintenance to winter snow clearance.
Compared to its brother (LV1400 DOMINATOR, the PRO has even more stability on uneven ground and less weight)
Lowest centre of gravity in its category. This means that Green Climbers can work even in extreme conditions.
The variable width undercarriage achieves an unrivalled stability on uneven and steep terrain and can be adjusted directly from the remote control.
The tool's lateral movement enables work beyond the machine's footprint of up to 1000 mm.
Our undercarriage with its patented track guard system dramatically increases stability and reliability.
The LV 1400 PRO has the ability to work even on muddy or loose soil.
The rapid connect/disconnect system allows for time savings for changing the attachments. A tool-less method to change attachments for the necessary job.
The easy and intuitive driving with a single joystick ensures that you always have one hand free to manage other machine movements.
The 3 additional auxiliary hydraulic lines with double-acting and proportional movement ensure that even attachments with multiple functions can be controlled directly from the remote control.
The reversible fan and oversized radiator allow continous work in dusty and high temperature environments.
The Smart Battery System (SBS) is an intergrated sealed compartment that houses a battery charger for the remote control. The spare battery recharges automatically while the machine is working.
The high-strength steel frame makes our Green Climbers the lightest in its class.
Powder coating gives the bodywork protection against corrosion.
Features
| Lateral translation | 700 mm (hydraulic) |
| Undercarriage | Extendable (patented) |
| Special motor lubrication system | Yes (patented) |
| Rapid hydraulic plate attach | Yes |
| Undercarriage for elevate slopes | Yes (patented) |
| Track anti-derailment system | Yes (patented) |
| MDB prefiltered air turbine | No |
| Towing hitch | Yes |
| Maximum slope | up to 60° in all directions |
| Working lights | Yes |
| Display on machine | Yes |
| Undercarriage with system to copy uneven ground | Yes |
Hydraulics
| Transmission | Hydrostatic Proportional |
| Principal accessory pump | (piston closed loop) 164 L/min @420bar |
| Service pump | 54.0 L/min @300 bar |
| Auxiliary pump | 40.0 L/min @200 bar |
| Accessory Hydraulic Outputs | 2 proportional auxiliary lines & 1 on/off |
| Hydraulic oil tank capacity | 82 L |
| Hydraulic Load Control Sensor | Yes |
Dimensions

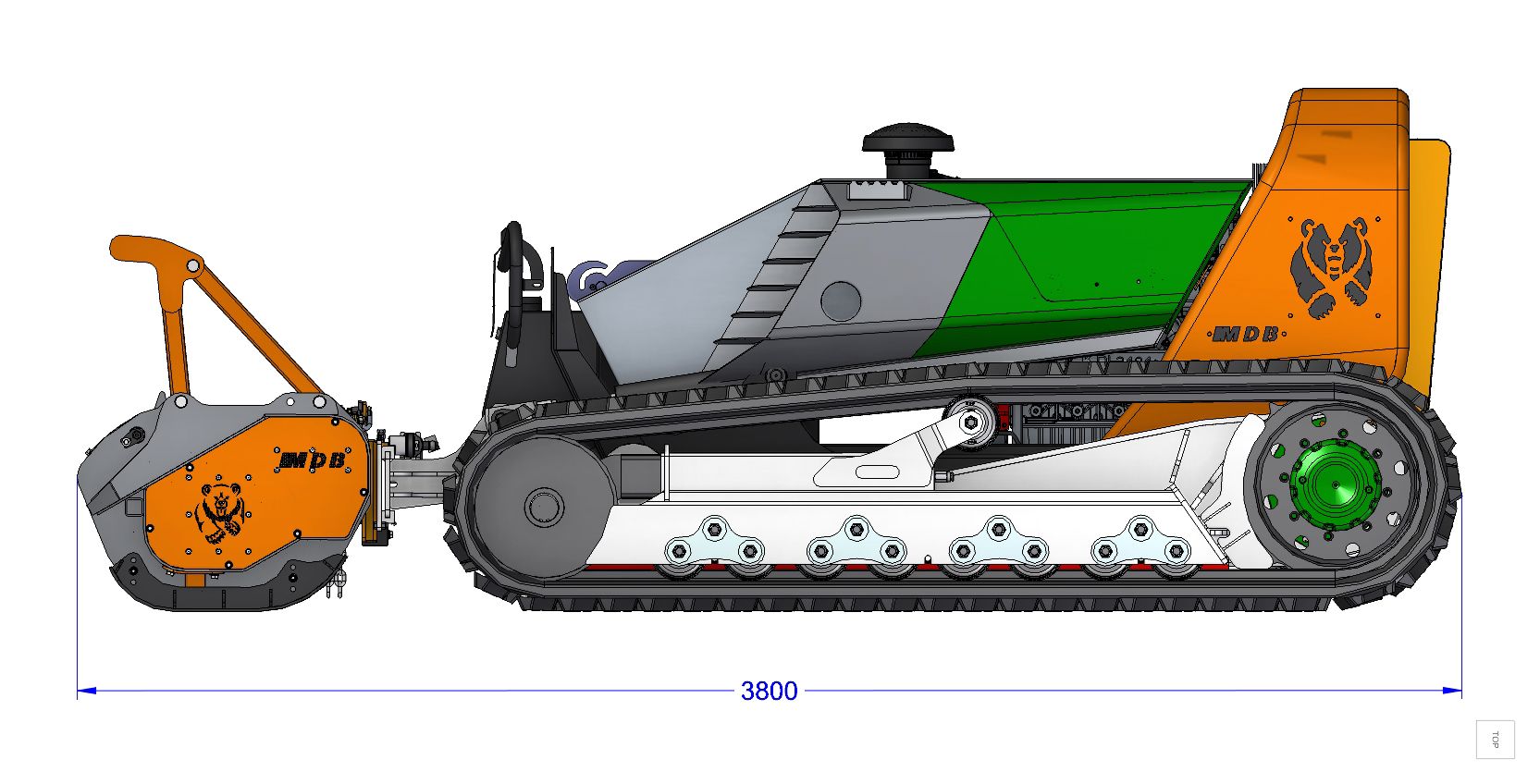

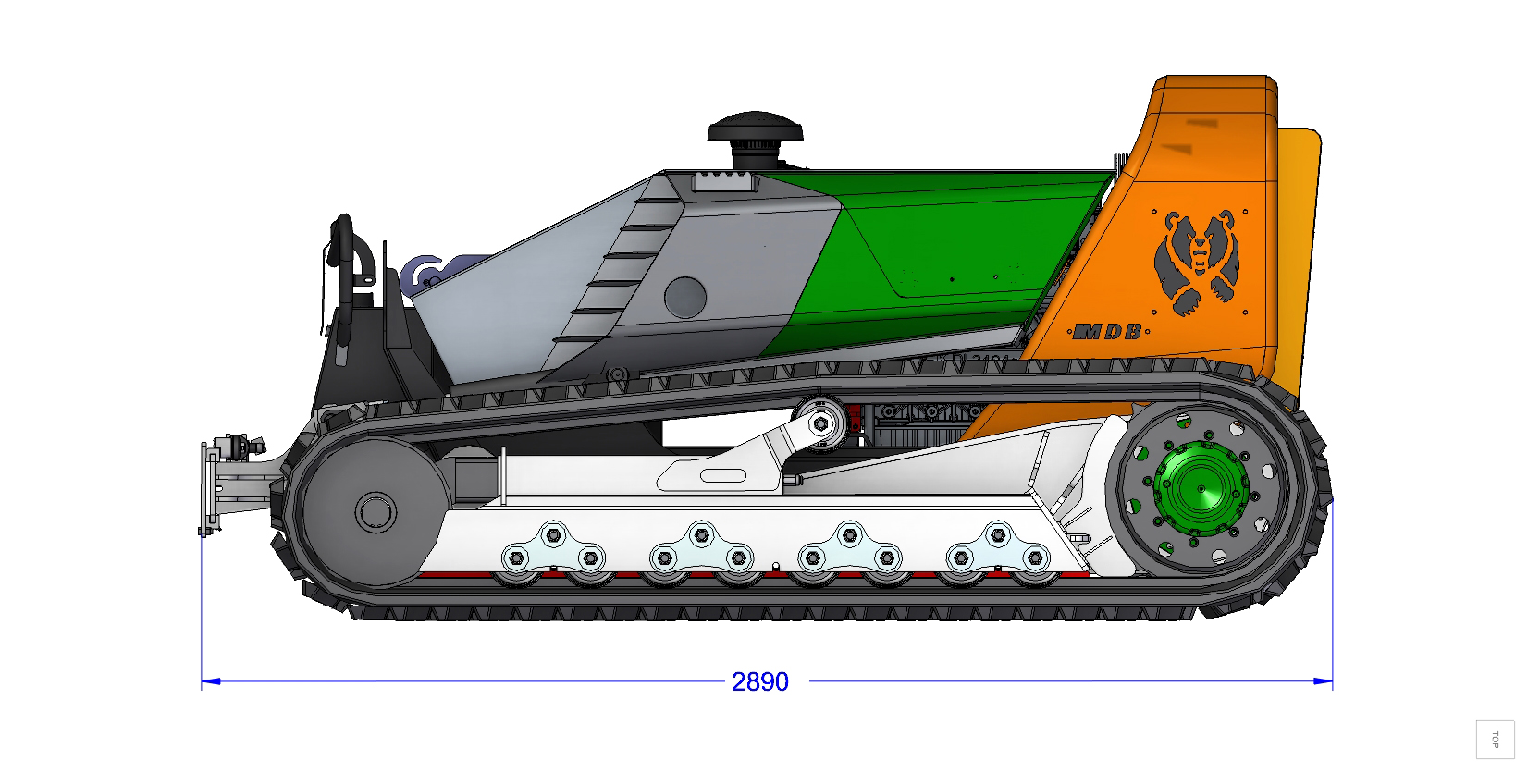

| Length | 2890 mm |

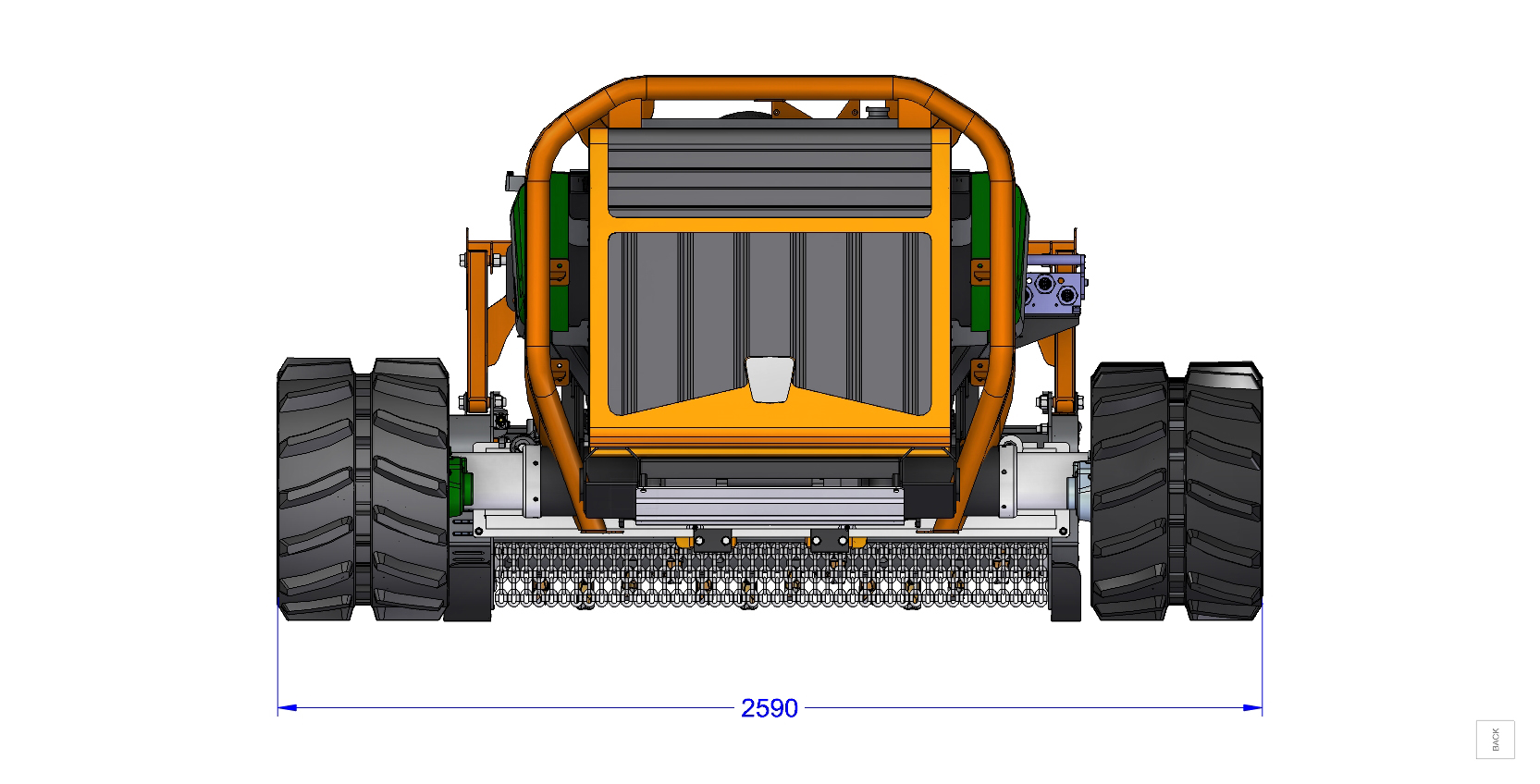

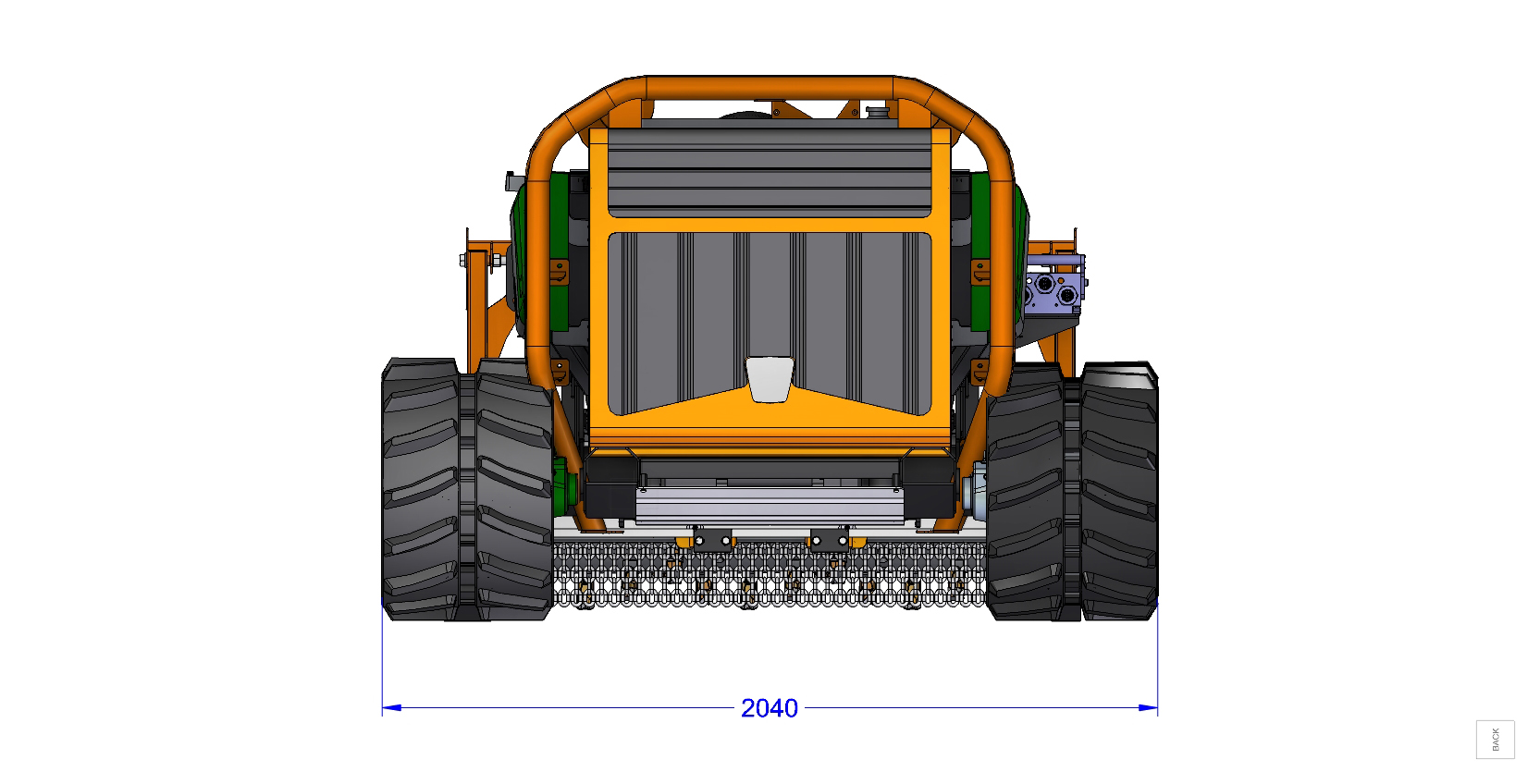

| Width | 1990 mm (Closed) 2590 mm (Open) |
| Height | 1670 mm |
| Weight | 3450 kg |
| High profile rubber tracks | 450 mm |
| Pressure on soil | 0.2 kg/cm² |
| Flail working width | 1476 mm |
| Overall flail width | 1663 mm |
| Flail operating weight | 710 kg |
| Flail rotor diameter | 421 mm |
| Max shredding diameter | 200 mm |
Engine
| Brand and model | KOHLER Turbo Intercooler Common Rail 4 cilindri KDI3404TCR |
| Fuel type | Diesel |
| Fuel tank capacity | 90 L |
| Power | 140 hp |
| Torque | 650 Nm @ 1400 rpm |
| Max speed | 9 km/h |
| Emission norms | Stage V - EPA Tier 4 Final |
| Cooling | Liquid with reversible fan and oversized radiator |

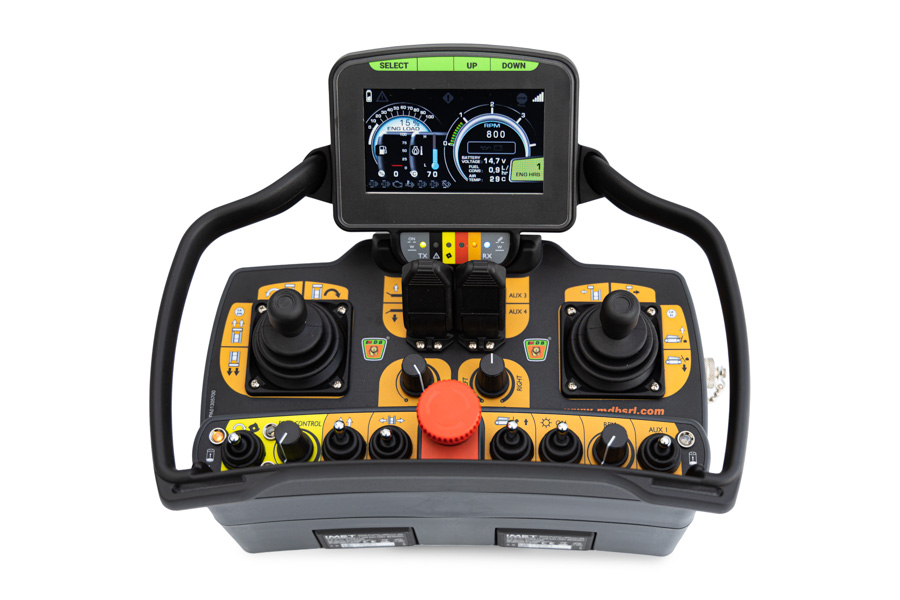

Remote control
| Scope of work | calibrated to 100 m for visibility |
| Drive with one joystick (completely proportional) | Yes |
| Battery charger compartment | onboard |
| Remote-control with display | Yes, display showing machine parameters |
